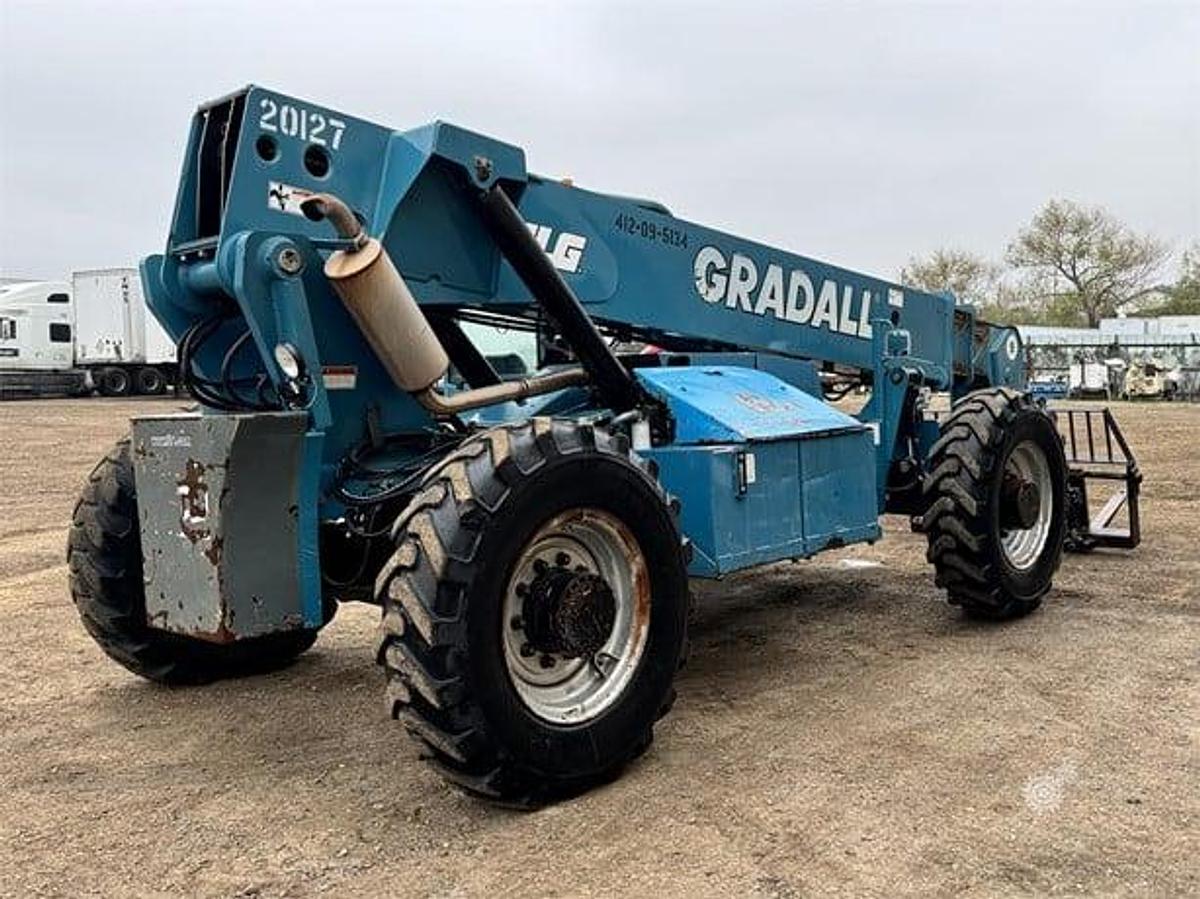

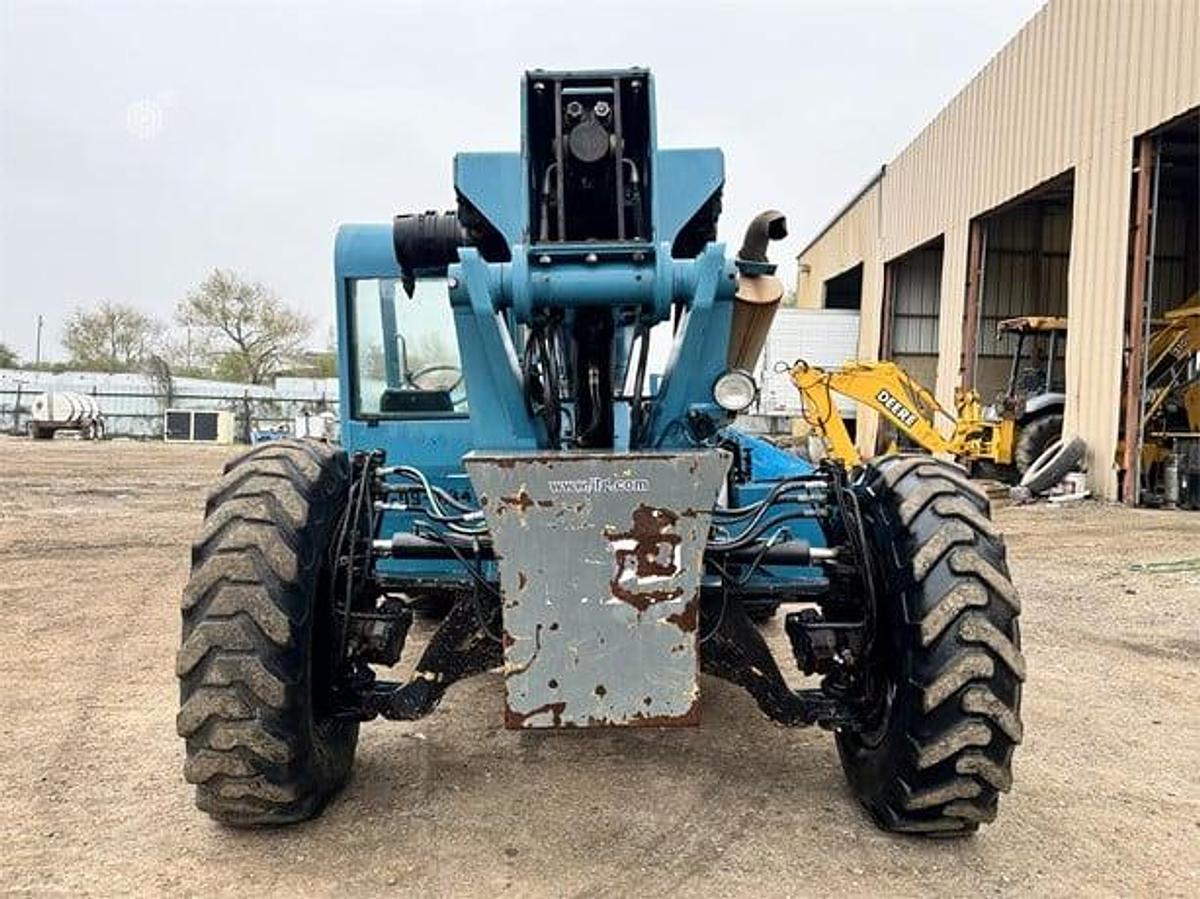

2005 Gradall 534D-9

Year: 2005

Make: GRADALL

Model: 534D-9

Tire Type: All Terrain Pneumatic

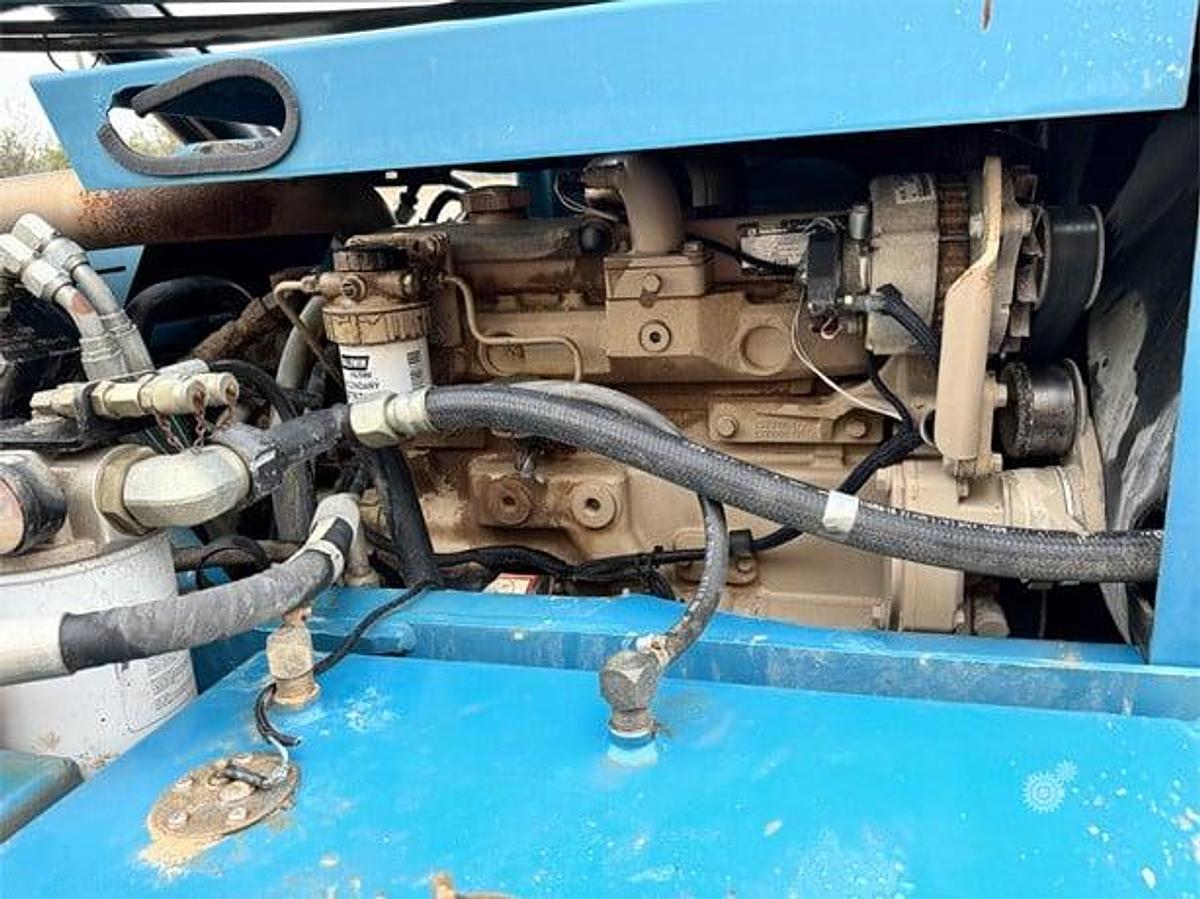

Power: Deere Diesel Engine

Max Lifting Capacity: 9,000 Lbs.

Maximum Lift Height: 44+ FEET

Additional Info: 4X4X4, Hydraulic Leveling

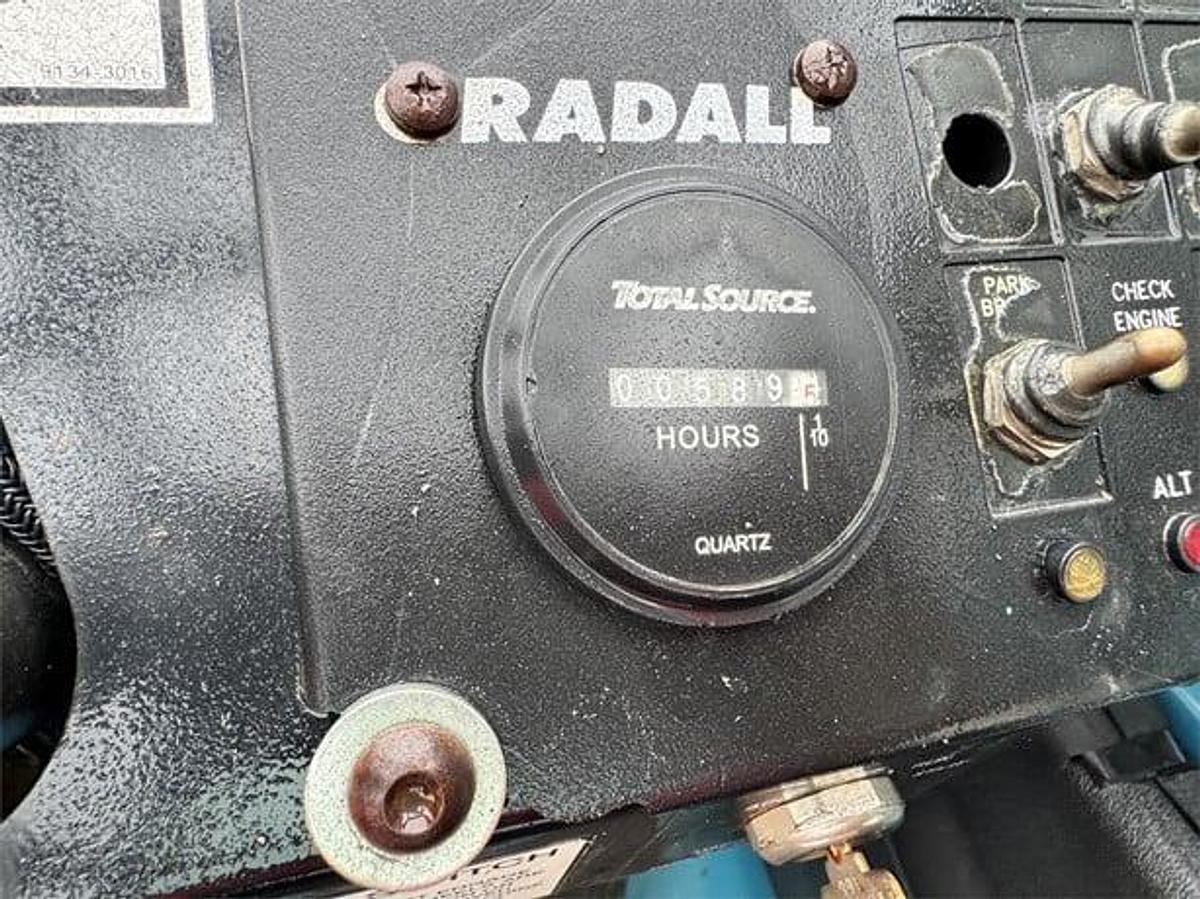

Hours: 589

Warranty: 30 Day Powertrain Warranty

Delivery: Nationwide Delivery Available

Detailed Specifications:

• Rated Capacity: 9,000 lb (4,082 kg) at 24 in (610 mm) load center.
• Maximum Lift Height: 45 ft (13.7 m).
• Maximum Forward Reach: 31.5 ft (9.6 m).
• Frame Leveling: 8 degrees.
• Lift Speed (boom retracted): Up: 11.4 seconds, Down: 9 seconds.
• Boom Speed: Extend: 15 seconds, Retract: 13 seconds.
• Travel Speed: 2WD 0-18 mph (29 kmph), 4WD 0-6 mph (9.7 kmph).
• Drawbar Pull (loaded): 20,000 lb (9,072 kg).
• Operating Weight: 24,420 lb (11,077 kg) with 48 in (1.2 m) carriage and forks.

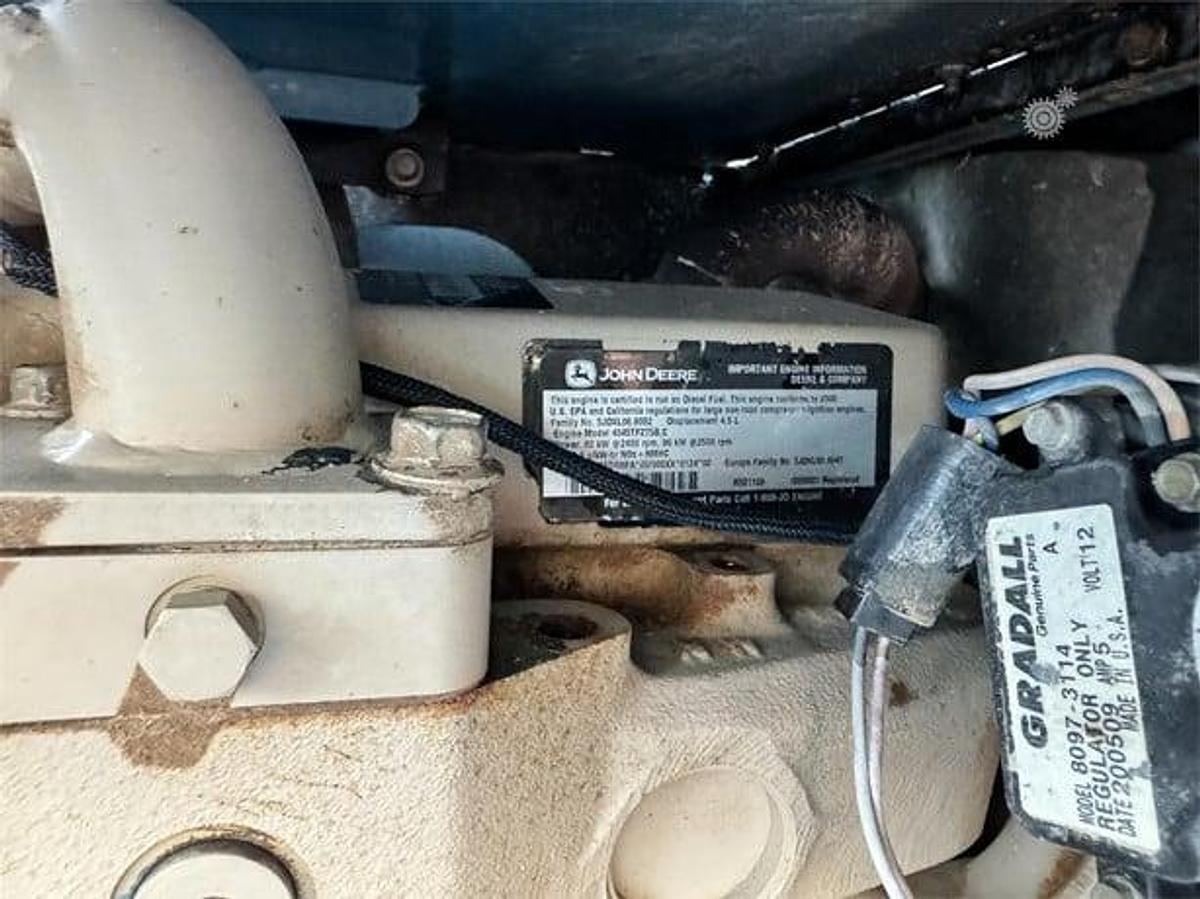

• Engine: 4-cylinder, 110 hp (John Deere 4045TF275 or Cummins QSB4.5).
• Fuel Capacity: 38 gal (144 L).
• Hydraulic System Fluid Capacity: 40 gal (151 L).
• Operating Voltage: 12 volts.
• Standard Carriage: 48 in (1.2 m), 66 in (1.7 m), or 72 in (1.8 m).

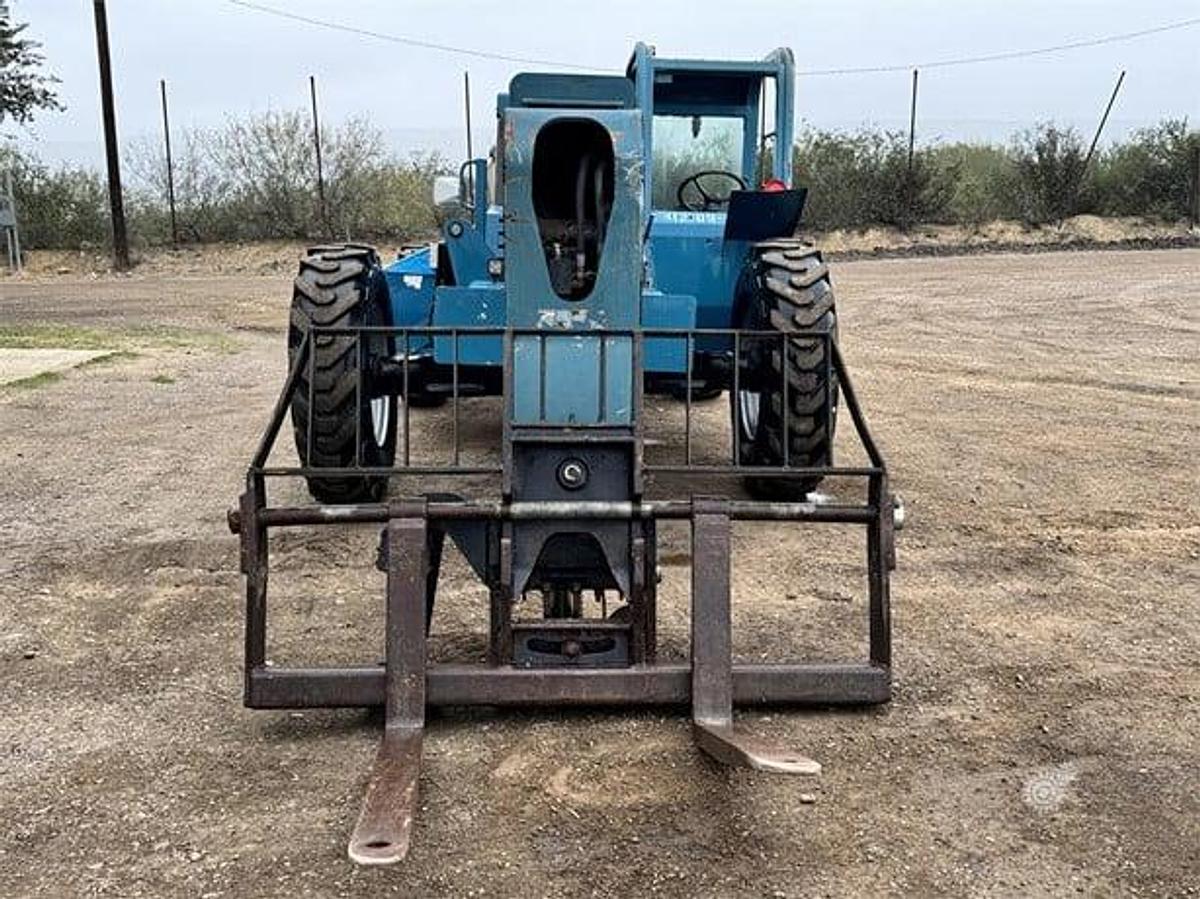

• Pallet Forks: 2 x 6 x 48 in (51 mm x 152 mm x 1.2 m).
• Vertical Mast: 6 ft (1.8 m).
• Dimensions:Length (less forks): 19.76 ft (6.02 m).
• Width: 8.08 ft (2.46 m).
• Height: 7.81 ft (2.38 m).
• Wheelbase: 11.23 ft (3.42 m).
• Ground clearance: 19.02 in (483 mm).
• Outside turning radius: 14.41 ft (4.39 m).
