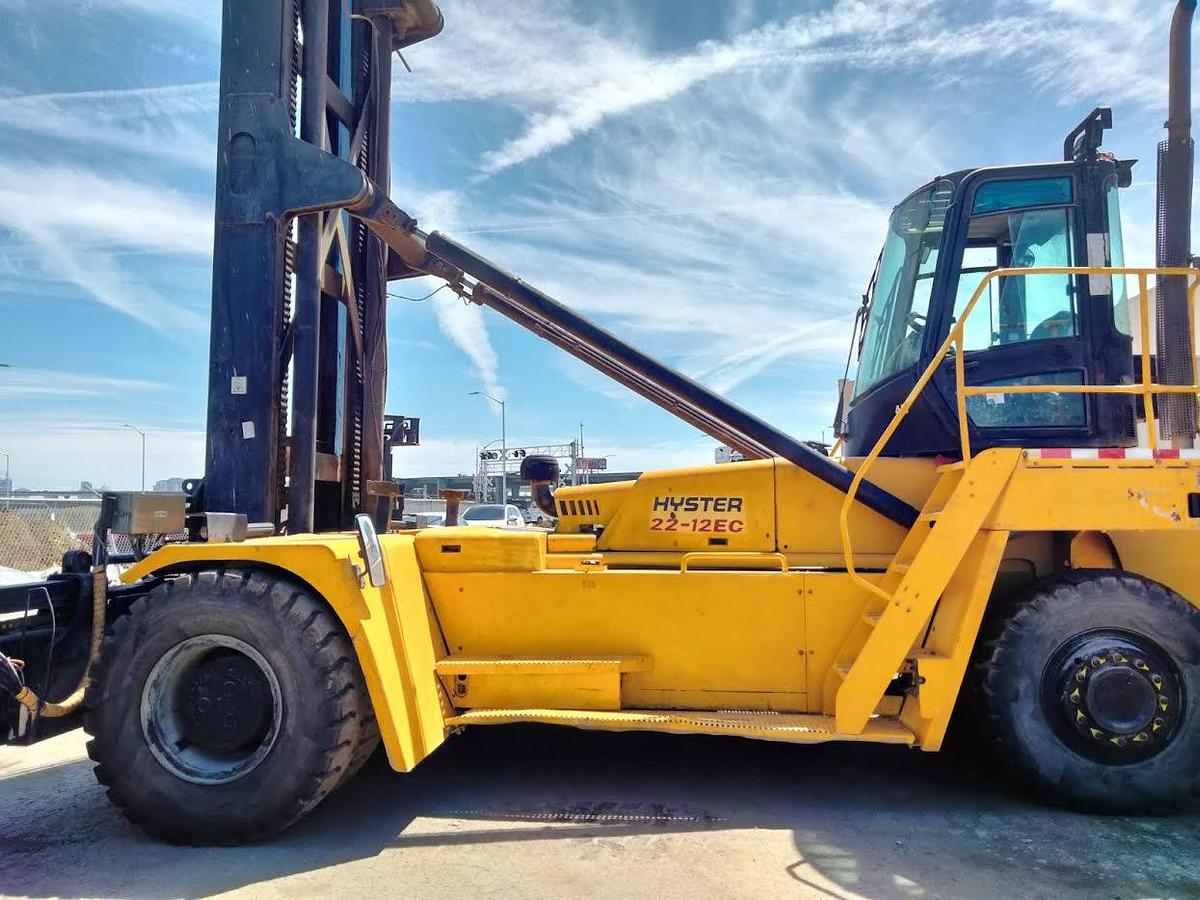

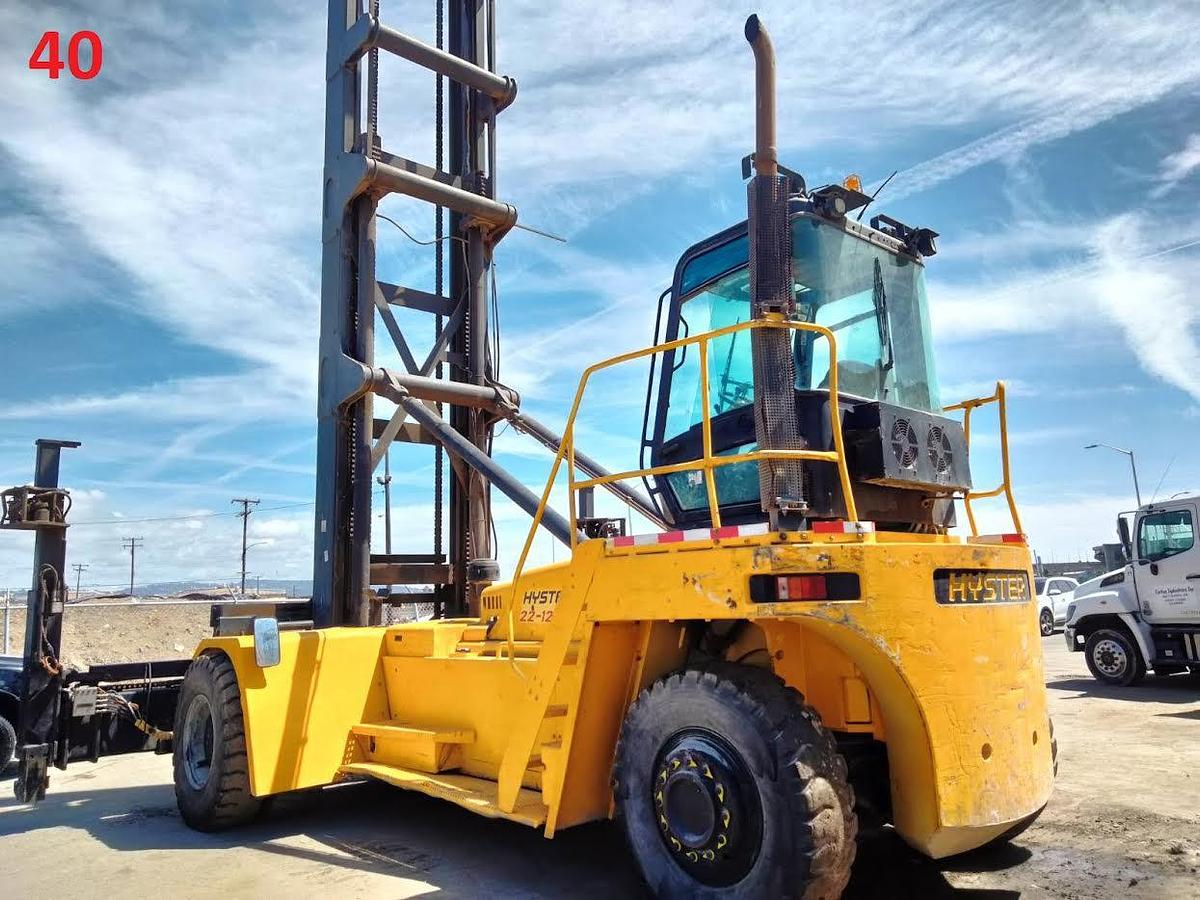

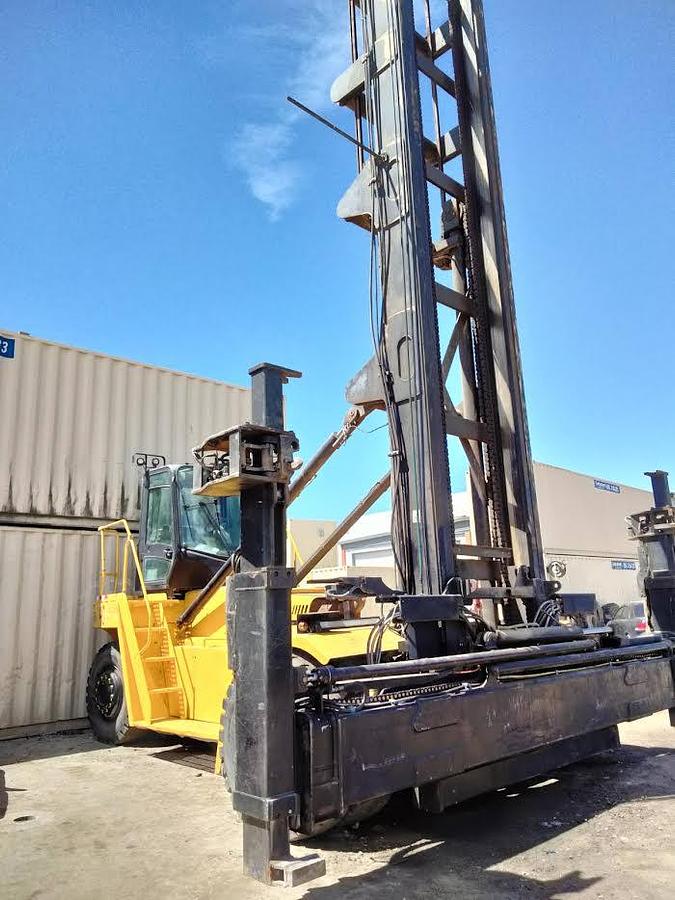

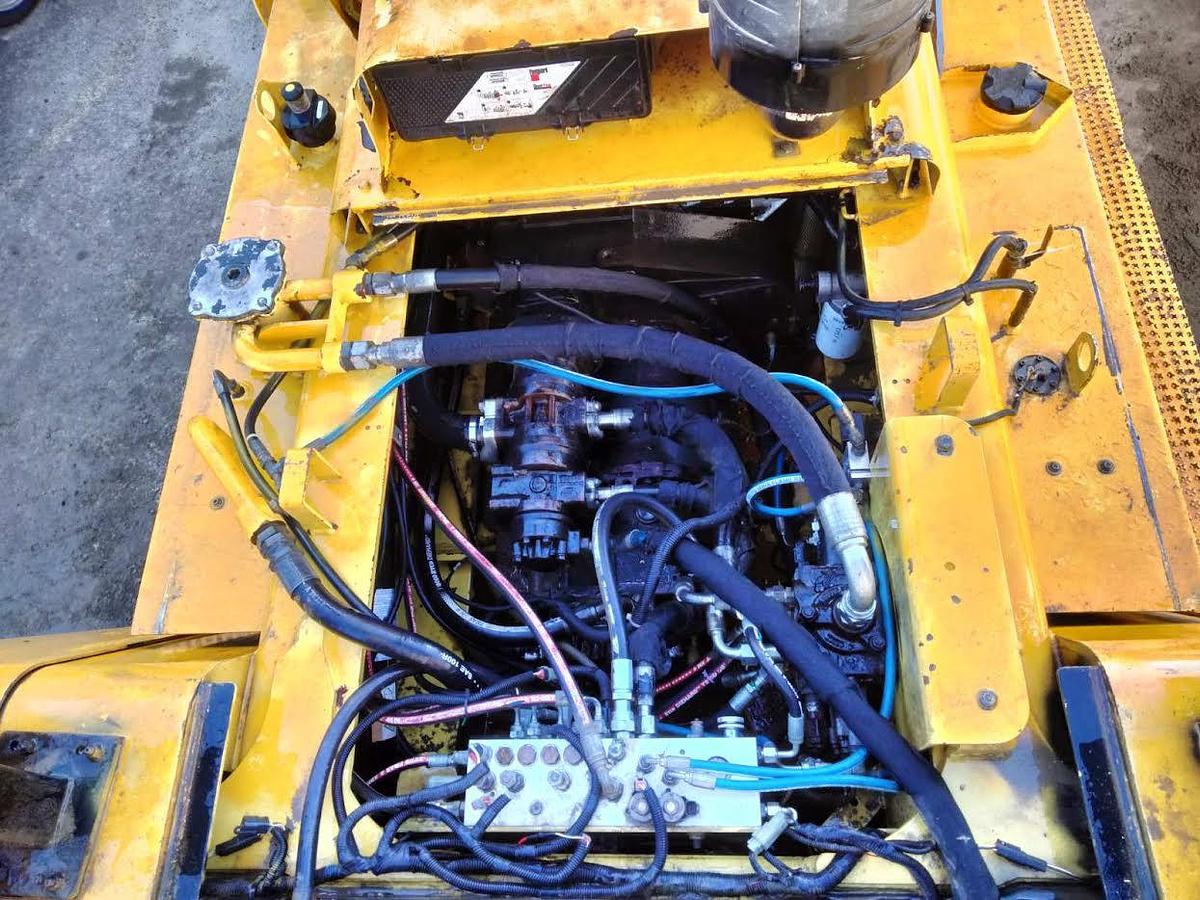

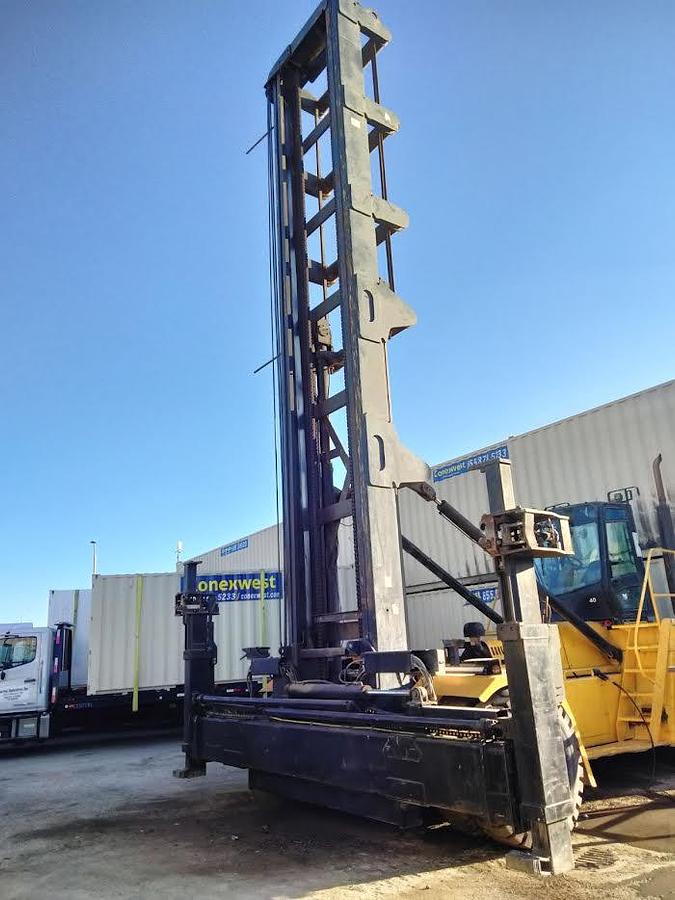

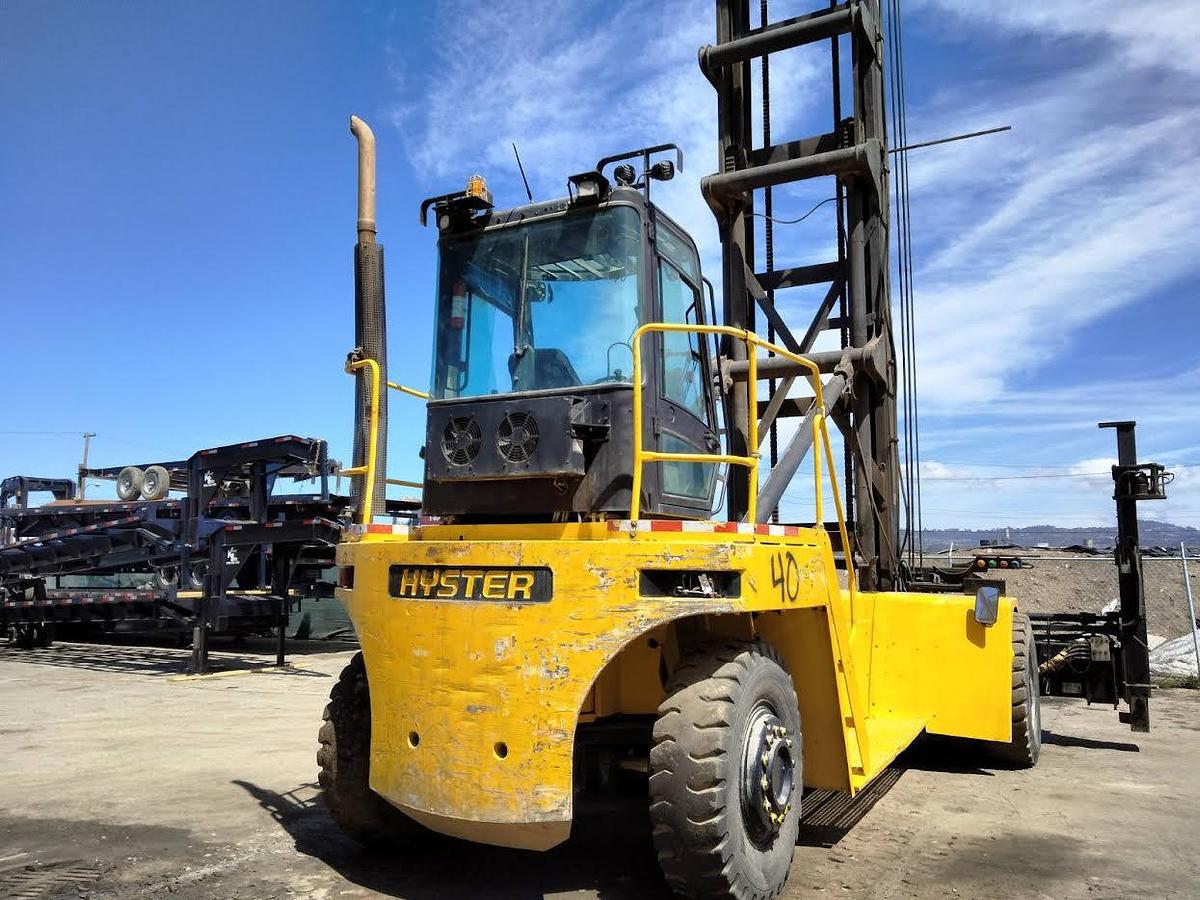

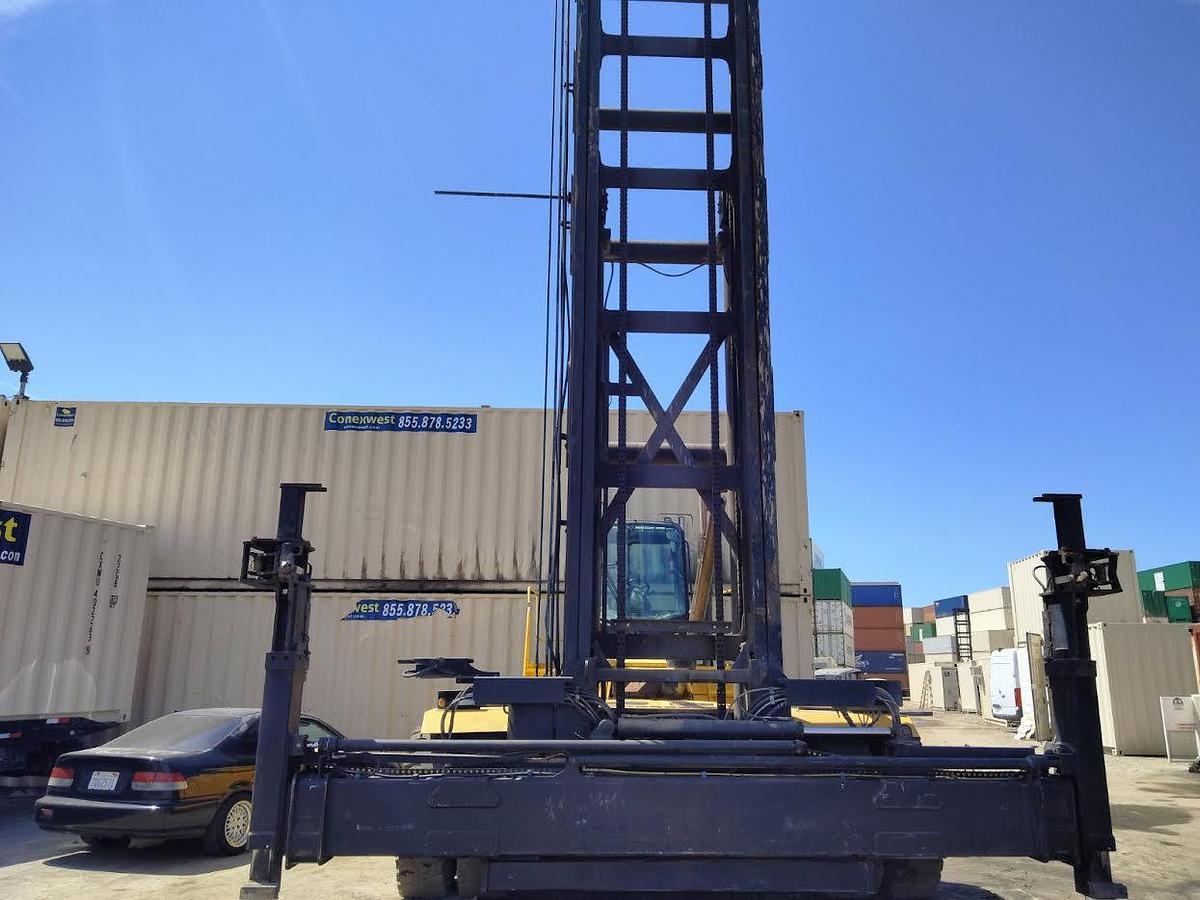

2012 Hyster H22.00XM-12EC

The 2012 Hyster H22.00XM-12EC is a heavy-duty diesel-powered empty container handler with a nominal lift capacity of 19,800 lbs and a maximum stacking height of approximately 53'. It is equipped with a Cummins QSB6.7 diesel engine, a Duplex mast, and an Elme telescopic spreader for 20-40ft containers.

Key Specifications (2012 Hyster H22.00XM-12EC)

Hours: 19,629

Model/Series: H22.00XM-12EC (Empty Container Handler)

Capacity: 19,800 Lbs. at a 48" load center

Lift Height: Up to 54'

Engine: Cummins QSB6.7 Diesel

Transmission: Dana TE17000 3-speed automatic

Weight: ~77,800 to 85,000 lbs. (varies by config)

Spreader: Elme 584LD telescopic (20'-40')

Mast Type: Duplex (two-stage)

Overall Width:13.5'

Performance & Features

Stacking Capability: Capable of stacking up to 7 high single containers, and 2-on-6 double stacking.

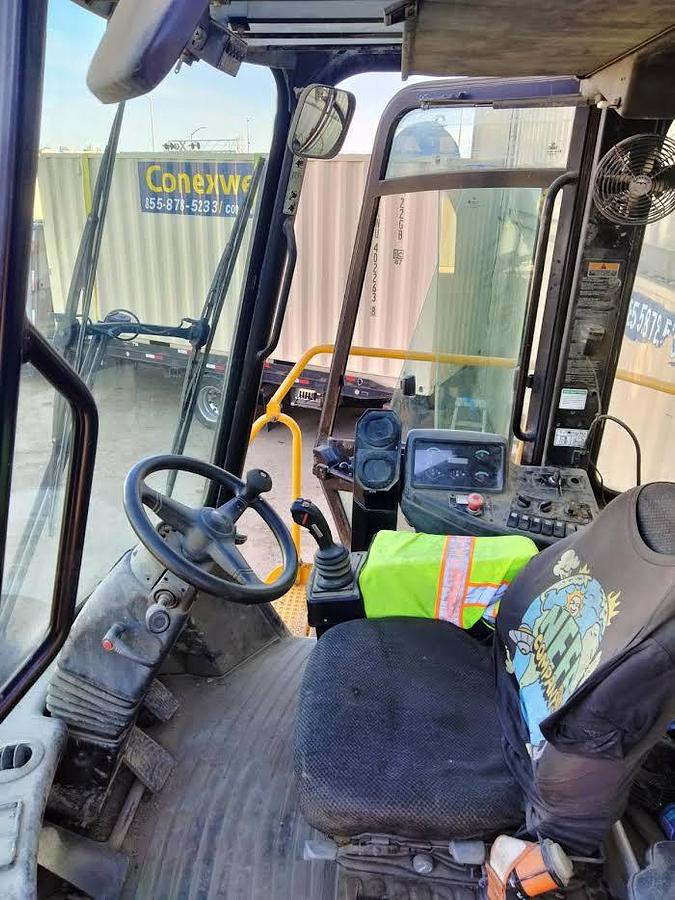

Visibility: Features a rear-mounted cabin for improved operator visibility during high-stacking operations.

Tires: Pneumatic (14.00--24).

Control: Joystick control for mast and spreader functions.

Note: Specifications may vary slightly based on specific configuration and options.
