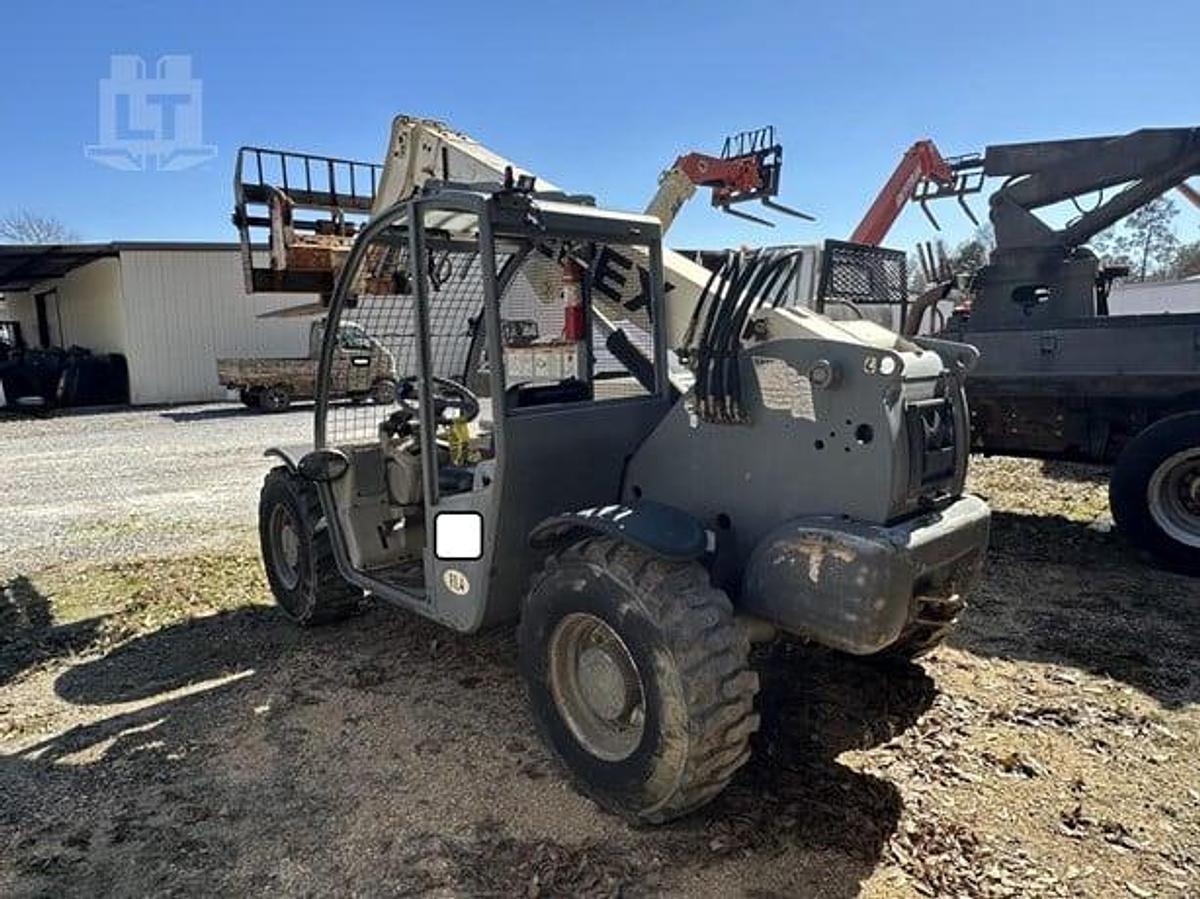

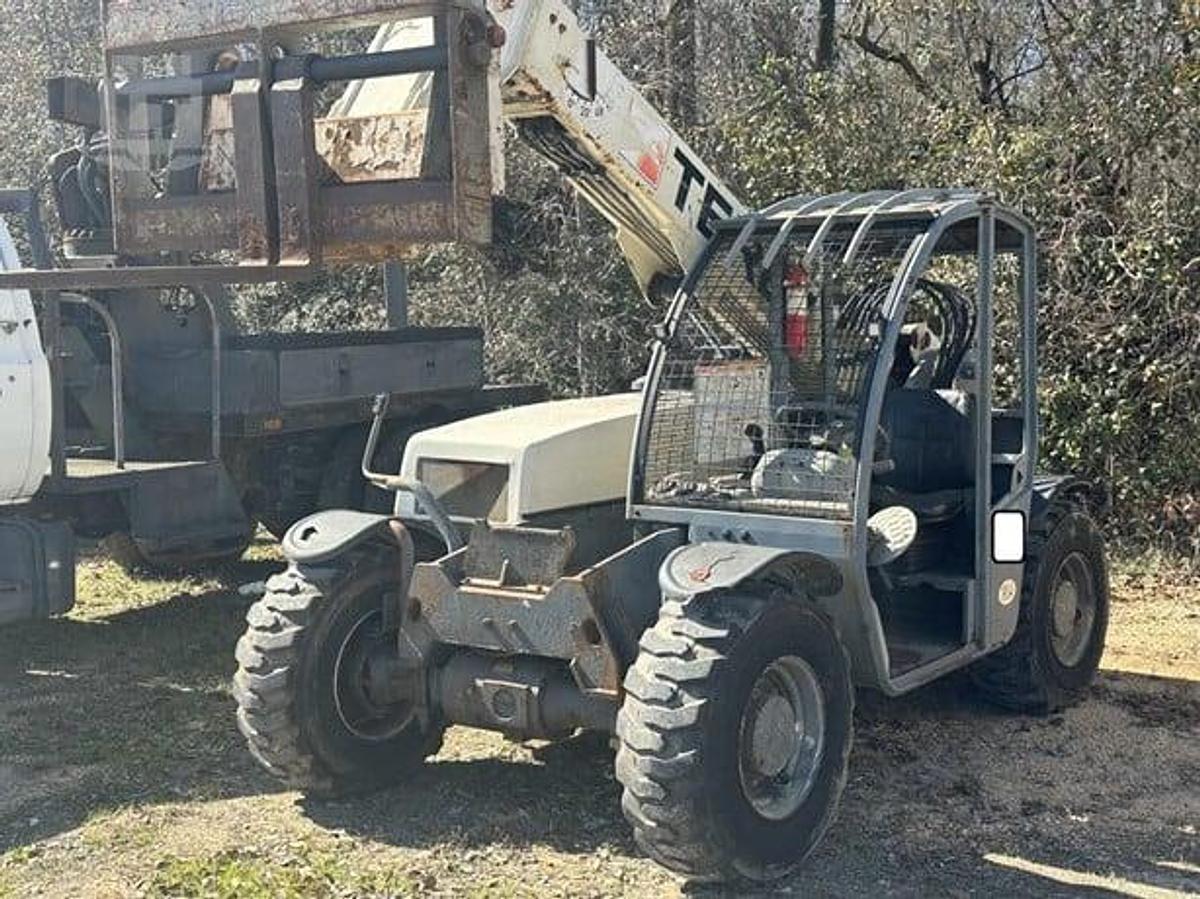

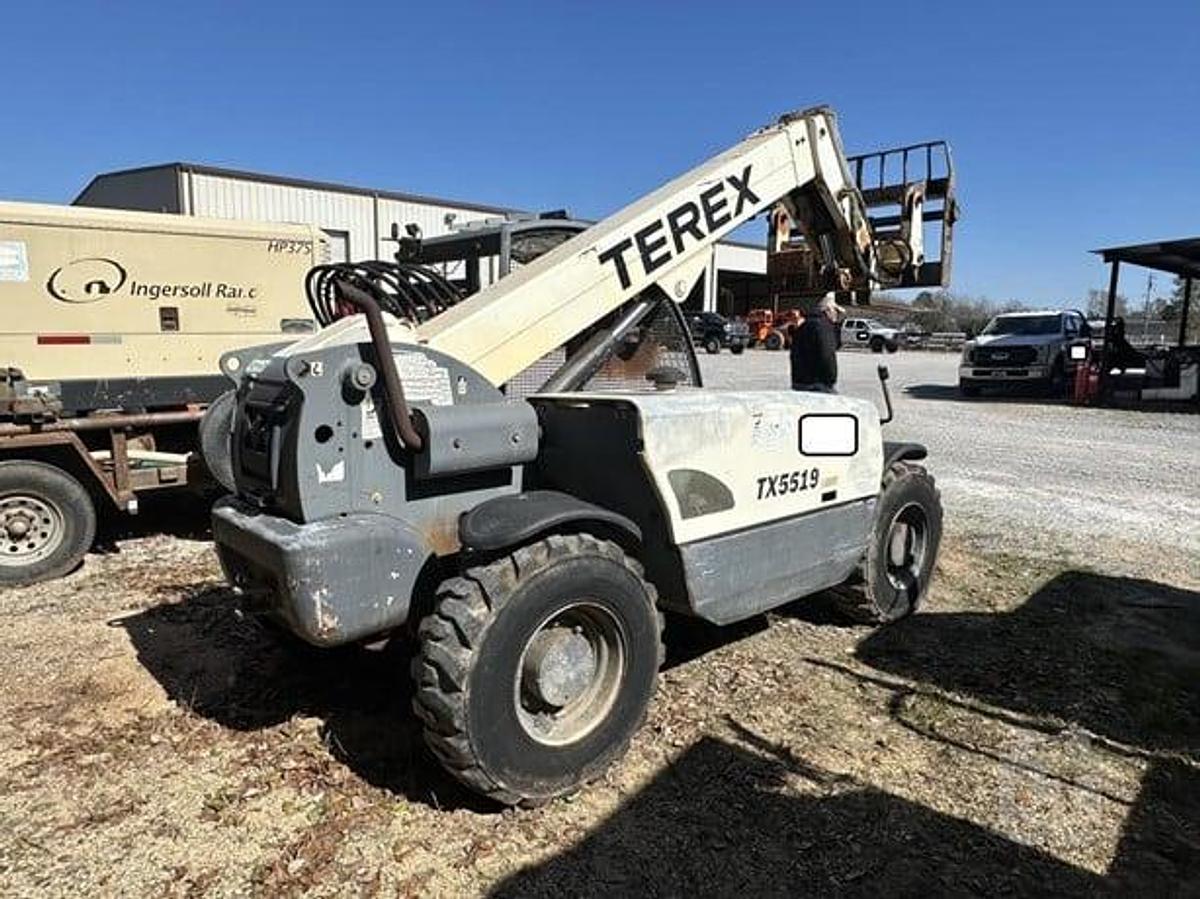

2005 TEREX TX55-19

Year: 2005

Make: TEREX

Model: TX55-19

Hours: 1334

Performance:

Maximum Lift Capacity: 5,500 lbs (2,495 kg)

Maximum Lift Height: 18' 10" – 19' (5.74 - 5.75 m)

Maximum Forward Reach: 11' 3" (3.43 m)

Payload at Max Reach: 1,700 lbs (771 kg)

Payload at Max Height: 2,599 lbs (1,179 kg)

Lift Speed/Capacity: 2-stage boom

Engine & Powertrain:

Engine: Deutz 4-cylinder diesel (~63 hp / 46.5 kW)

Transmission: Hydrostatic with continuous speed regulation

Drive: 4-wheel drive (4x4x4 - four-wheel steer)

Maximum Speed: 15 mph

Dimensions & Weight:

Operating Weight: 9,990 lbs (4,531 kg)

Width: ~6 ft

Overall Length (to fork face): 12.21 ft

Height: 6.3 ft (75.6 inches)

Turning Radius (outside tires): 11 ft

Features:

Steering Modes: Two-wheel, Four-wheel, Crab

Hydraulics: Quick attach with auxiliary hydraulics

Warranty: 30 DAY POWERTRAIN WARRANTY

Delivery: NATIONWIDE DELIVERY AVAILABLE
